PRODUCTS
‹
›
‹
›
The MGB series machine tools have a T-shaped layout,with a single column and side-hung box structure.The worktable and its sliding seat move along the horizontal bed guide rail(X coordinate),and the column is fixed on the sliding seat and moves along the longitudinal bed guide rail(Z(Y-direction coordinate),the spindle box moves along the vertical direction of the column guide rail(Y-direction coordinate); it is a T-shaped bed layout.The CNC worktable rotates 360 degrees(B coordinate), and the spindle(boring axis)(W coordinate)moves within the milling axis.
CHARACTERISTICS

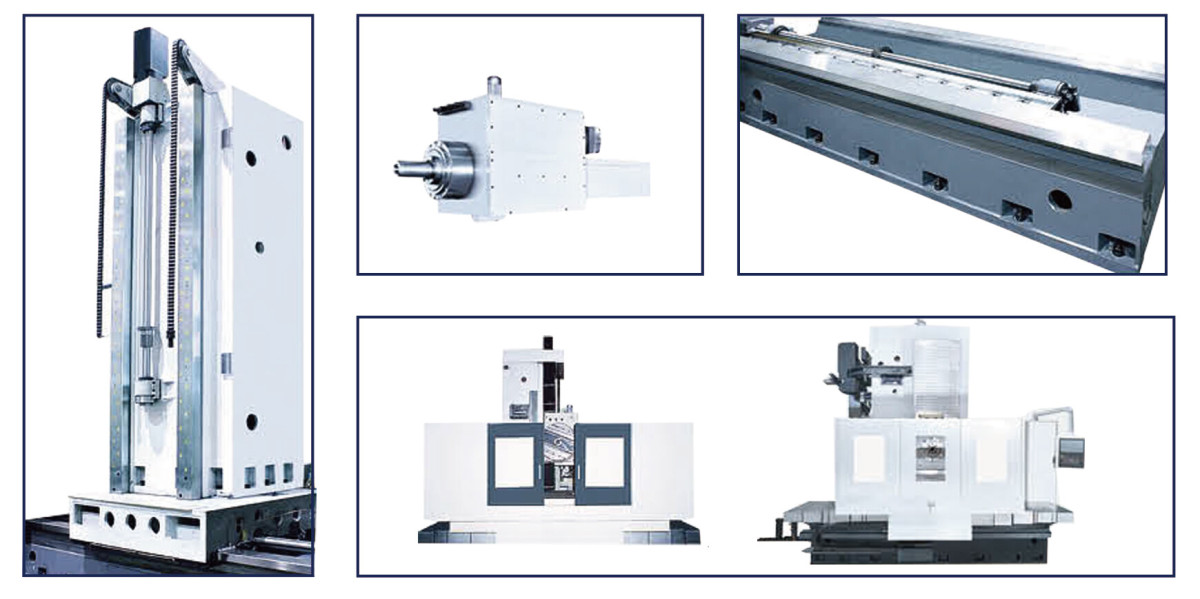

Driven by dual motors.Large bearing capacity,high precision of rotation,convenient adjustment and maintenance.X/Y/Z three-axis hard rail, after heat treatment,the surface hardness of the railis HRC50±2.The joint surface between the sliding seat and the guide rail is coated with polytetrafluoroethylene to reduce the friction cofficient and the contact rate is ensured after scraping treatment.A strip structure is used between the sliding seat and the main guide rail side to enhance the machine tool stiffness further.
The spindle box adopts a fullgear structure,with high and low gears for variable speed,which can achieve low speed,high torque and high-speed machining.The spindle group adopts high load-bearing bearings to ensure cutting rigidity.
The machine tool Y-axis adopts a nitrogen balance structure,which has a fast response speed and good balance effect.
PARAMETERS
STANDARD CONFIGURATION
SELECTIVE CONFIGURATION
