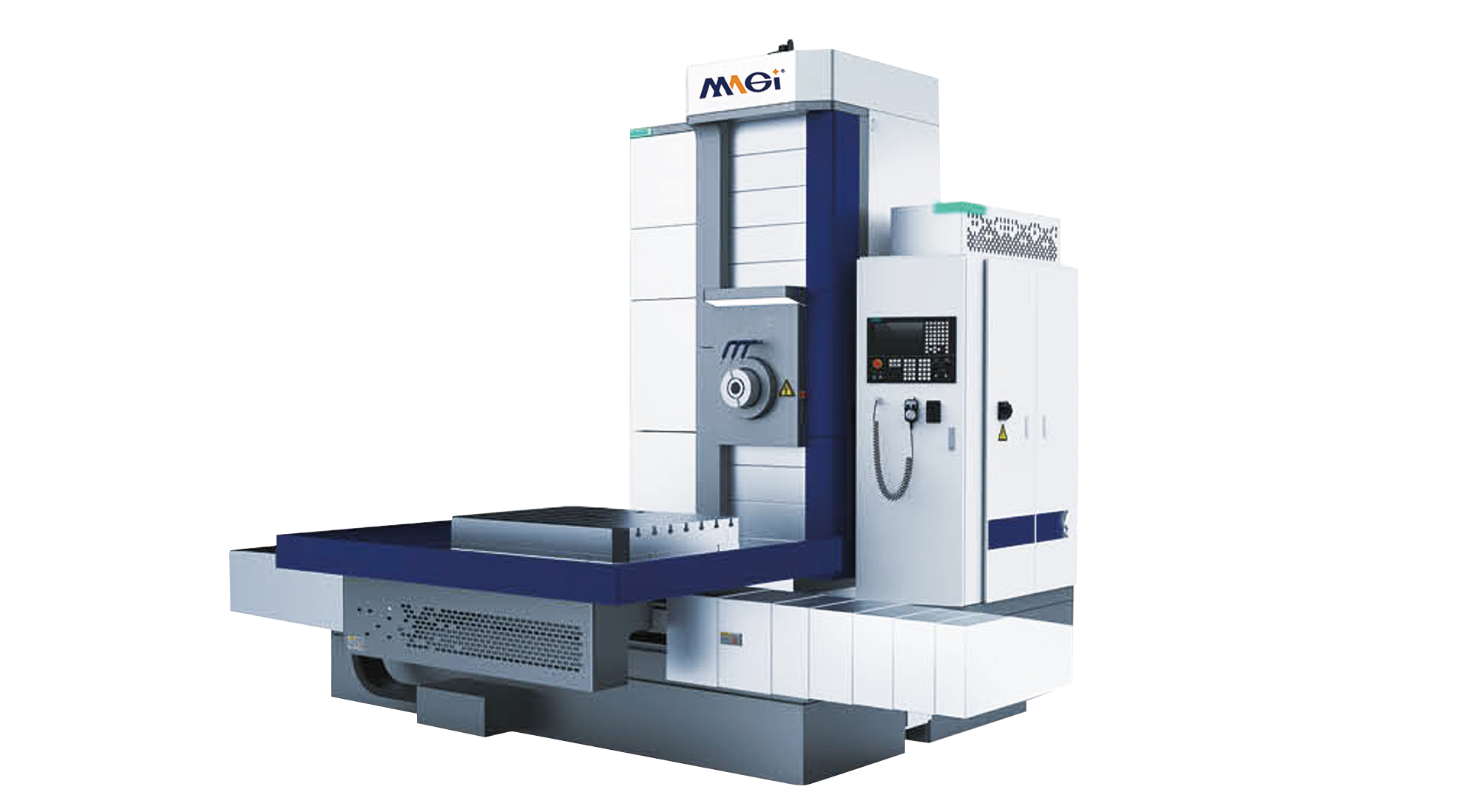

The MGB series machine tools have a T-shaped layout,with a single column and side-hung box structure.The worktable and its sliding seat move along the horizontal bed guide rail(X coordinate),and the column is fixed on the sliding seat and moves along the longitudinal bed guide rail(Z(Y-direction coordinate),the spindle box moves along the vertical direction of the column guide rail(Y-direction coordinate); it is a T-shaped bed layout.The CNC worktable rotates 360 degrees(B coordinate), and the spindle(boring axis)(W coordinate)moves within the milling axis.
